IFS Alpha Series Squat Stand - 83"


Color: Black - Textured

  • Black - Textured

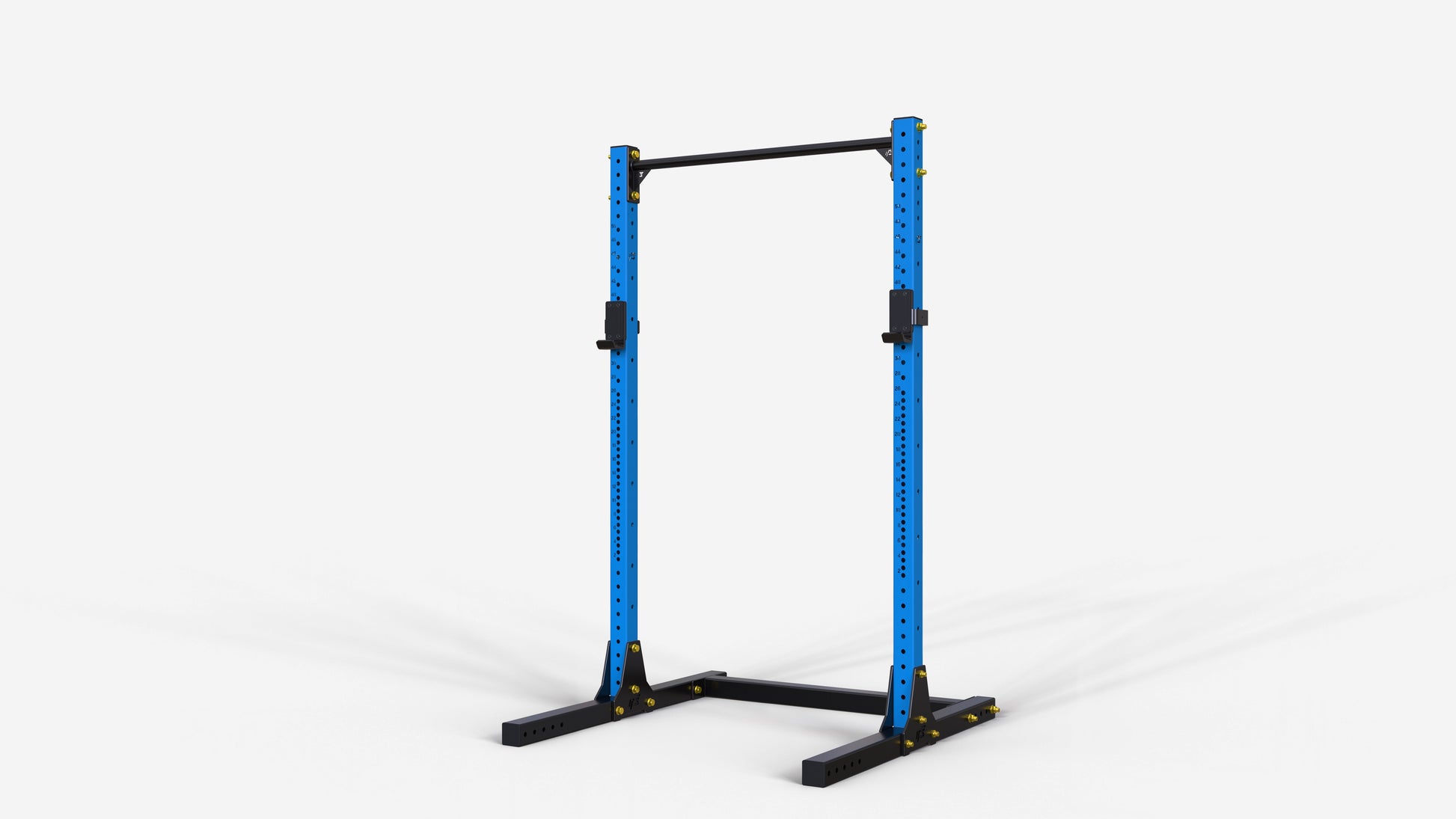

  • Traffic Red - Gloss
  • Sky Blue - Gloss
  • Fluorescent Green - Gloss

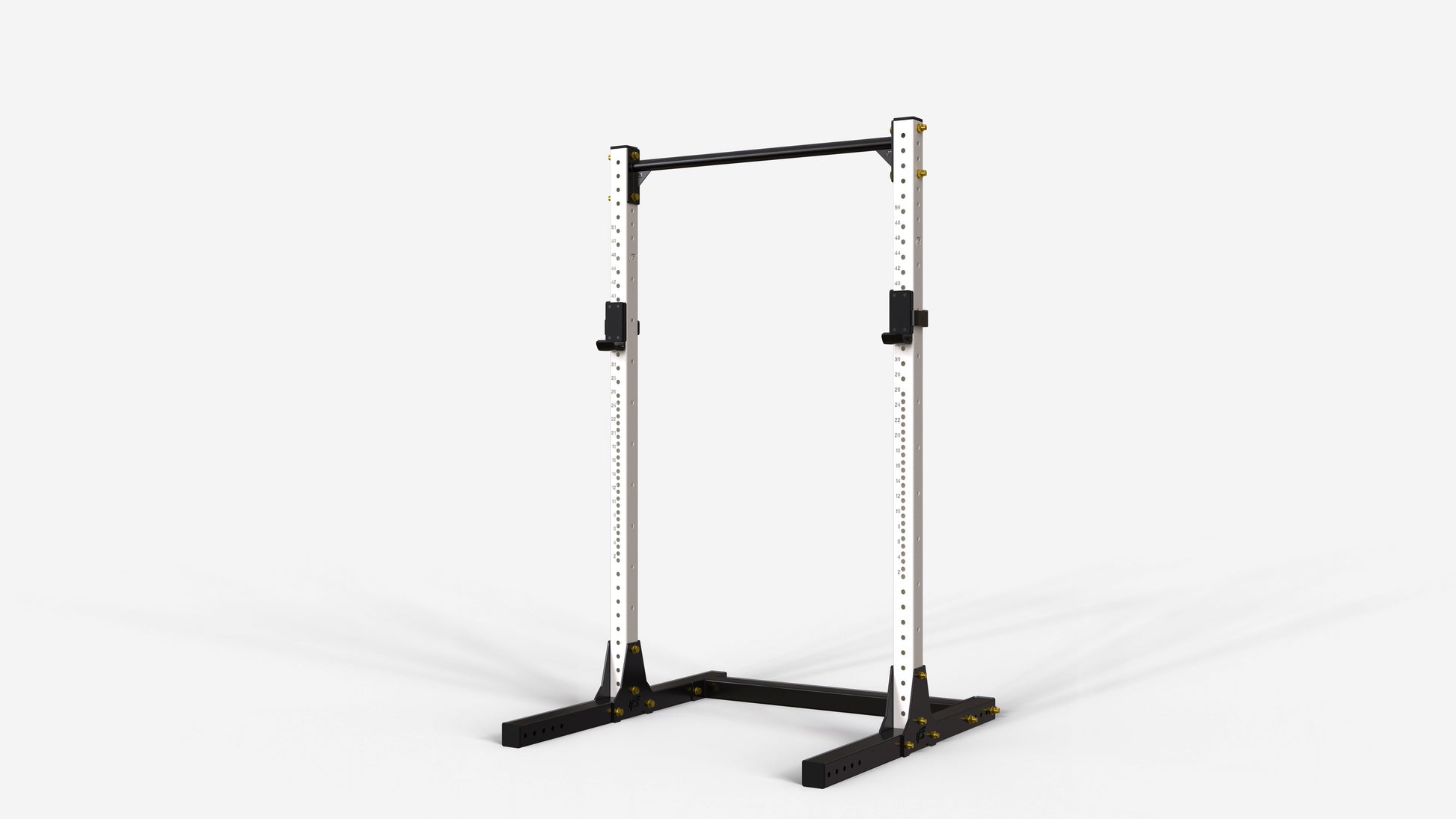

  • True White - Gloss

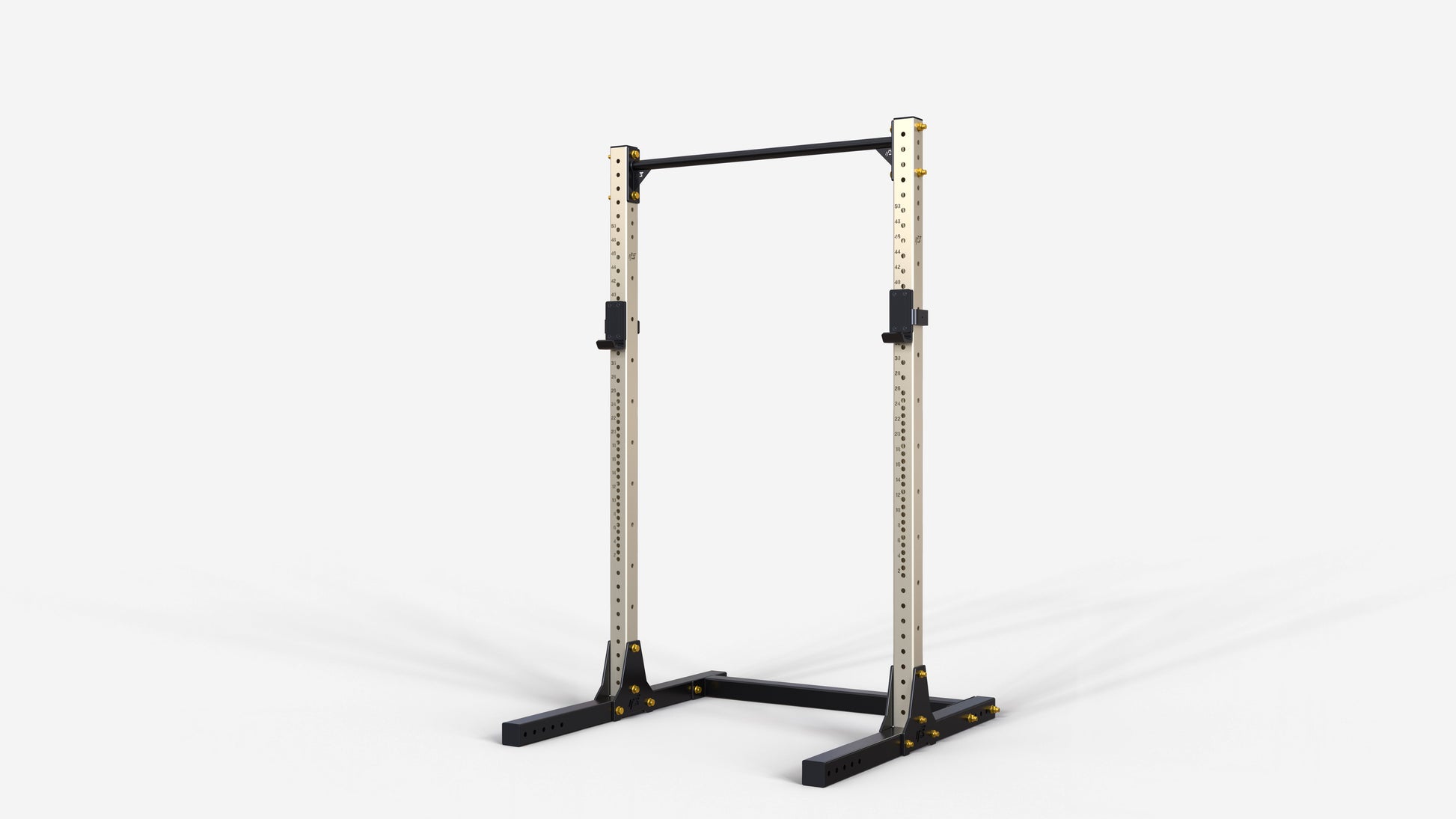

  • Desert Tan - Gloss

Westside Hole Spacing: Yes

  • Yes
  • No
  • yes
  • no

Laser Cut Numbers: Yes

  • Yes
  • No
  • yes
  • no
Out of stock

amazon paymentsapple payinteracgoogle paypaypalshopify payvisa

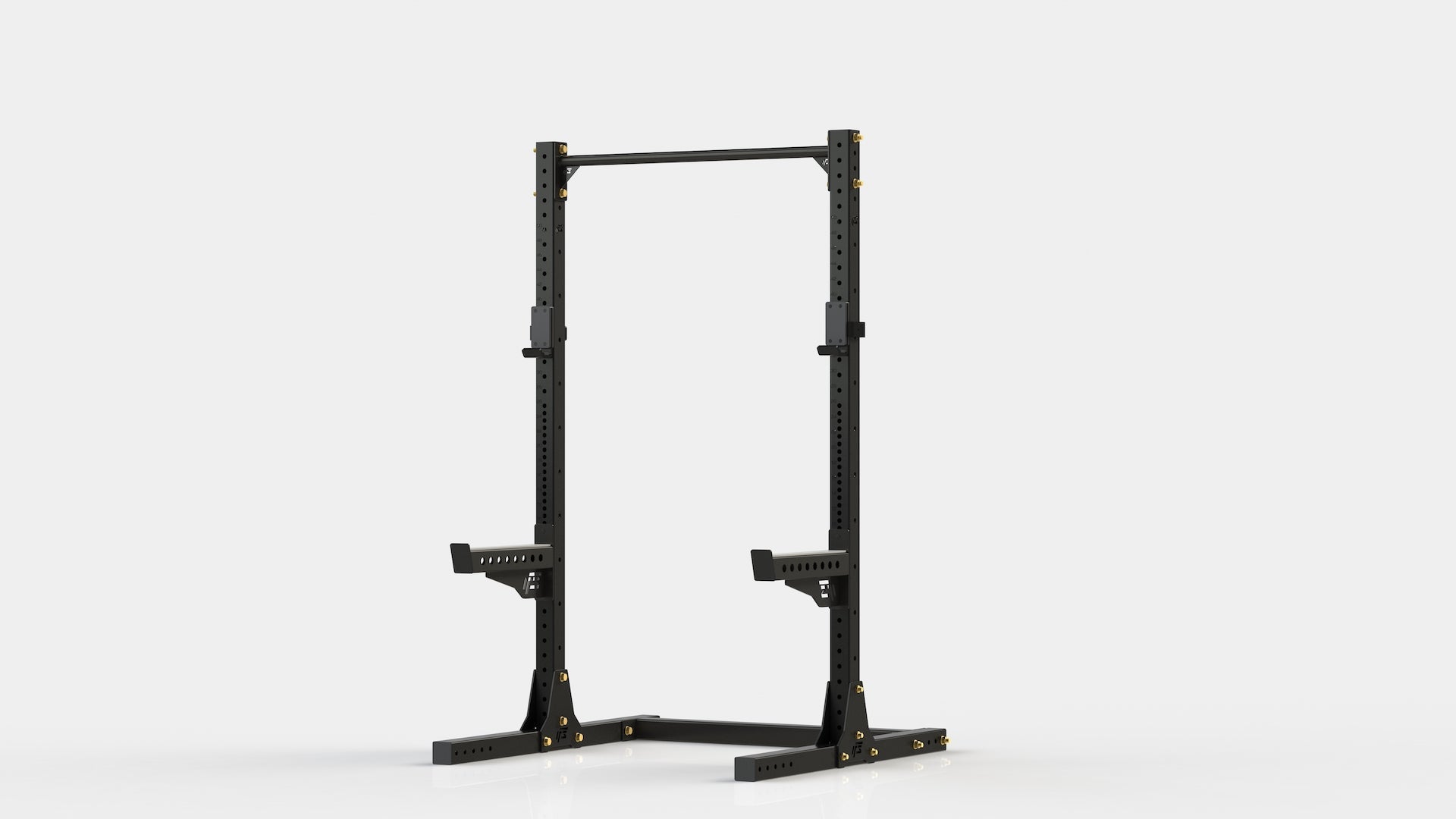

Alpha Series Squat Stand - 83"

When it comes to overbuilt squat stands there are far and few in between the IFS Alpha ASA-83 stands. This rack stands at (insert height), is constructed using 3x3” 11-gauge Canadian milled steel tubing from bottom to top. Bolted together with gold zinc plated 5/8” grade-5 hardware and uses oversized IFS baseplates to secure the uprights in place. This beefy rack weighs in at 166lbs with a base footprint of 52” front to back and 49” wide providing unparalleled stability.


This rack does not need to be bolted to the ground to be fully functional. It is a flat-footed rack and supports itself. However, we have taken it upon ourselves to incorporate floor mounting brackets into the rear crossmember to give you that option if you would like to secure it to a platform.


The ASA-83 uses 5/8” laser cut holes spaced 2” on center down the face and 6” on center down the sides to allow for the use of dip bars, landmines and other Alpha Series attachments. With loads of options such as westside hole spacing, laser cut pin position numbers, and band pegs you can have a pro-caliber squat stand at your disposal.

Each rack is meticulously inspected after each step during the build process. From the laser cut holes, welds, to the final powder coating process. We take pride in our work and back each product with a lifetime guarantee.

This Canadian made rack is perfect for small training facilities, garage gyms and will fit in almost any low ceiling basement.

this rack does not come with spotter arms, they can be found in the rack accessories tab


  • Built in WINNIPEG, MB, CA

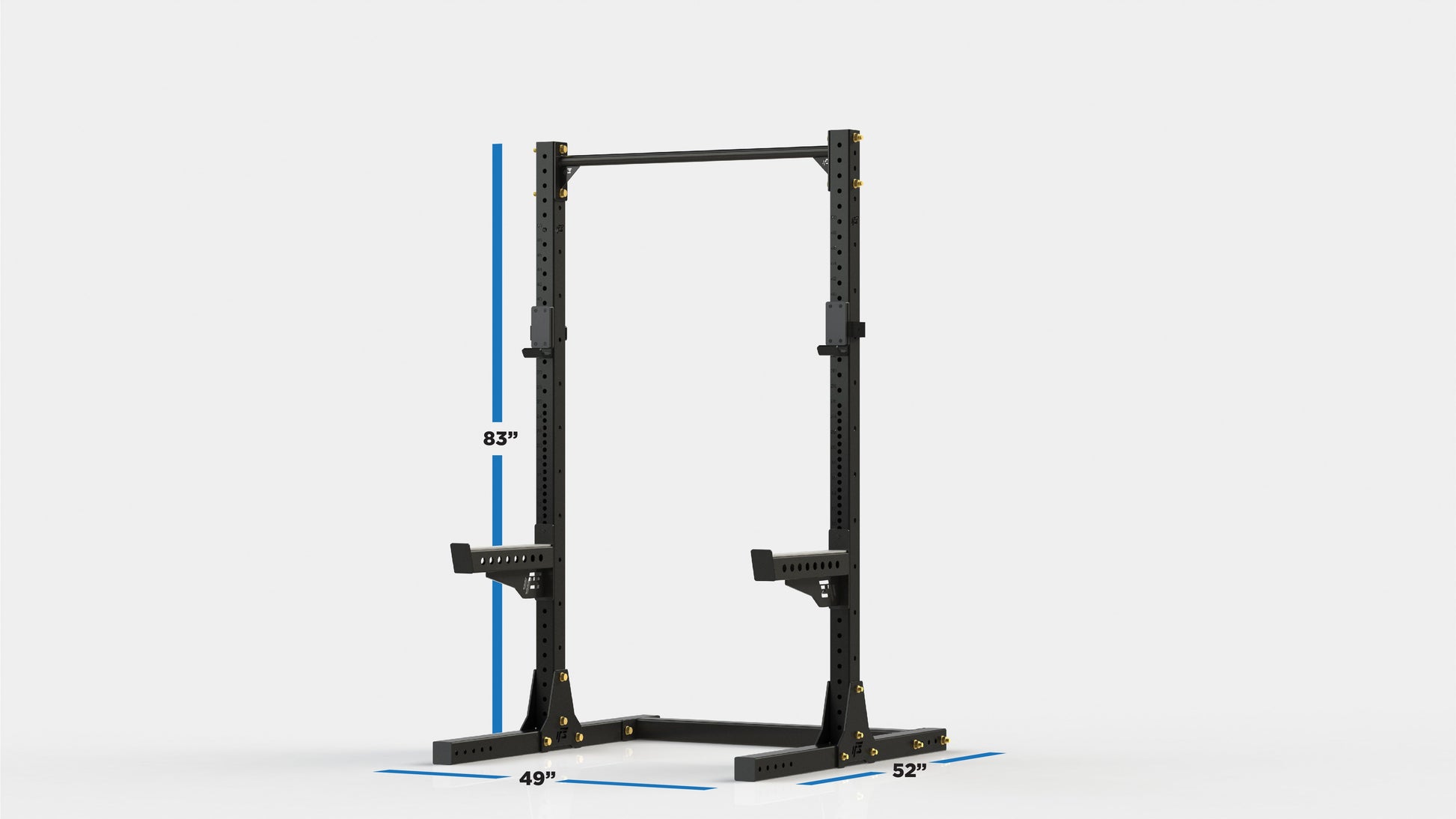

  • Assembled Height: 83"
  • Footprint: 52” x 49”
  • Weight: 166lbs
  • 5/8” Bolts and Fasteners and J-cup pins
  • (2) 3x3” 11-gauge Steel Uprights
  • (3) 3x3” 11-gauge Steel Base Tubes
  • Weight Capacity: 1,000LB+
  • Hole spacing: 2” on C
  • Hole size: 0.625” / 5/8”
  • (2) J-Cups with protective UHMW Plastic Inserts
  • Textured black finish
