RACK ATTACHED FUNCTIONAL CABLE COLUMN

Commercial-grade equipment · Facility-ready support

$5,910.00 CAD Selected configuration

Facility pricing and project quotes
available for multi-unit orders.

Need custom branding or a different layout?

Use the facility quote route for multi-unit, branded and project-specific equipment requirements.

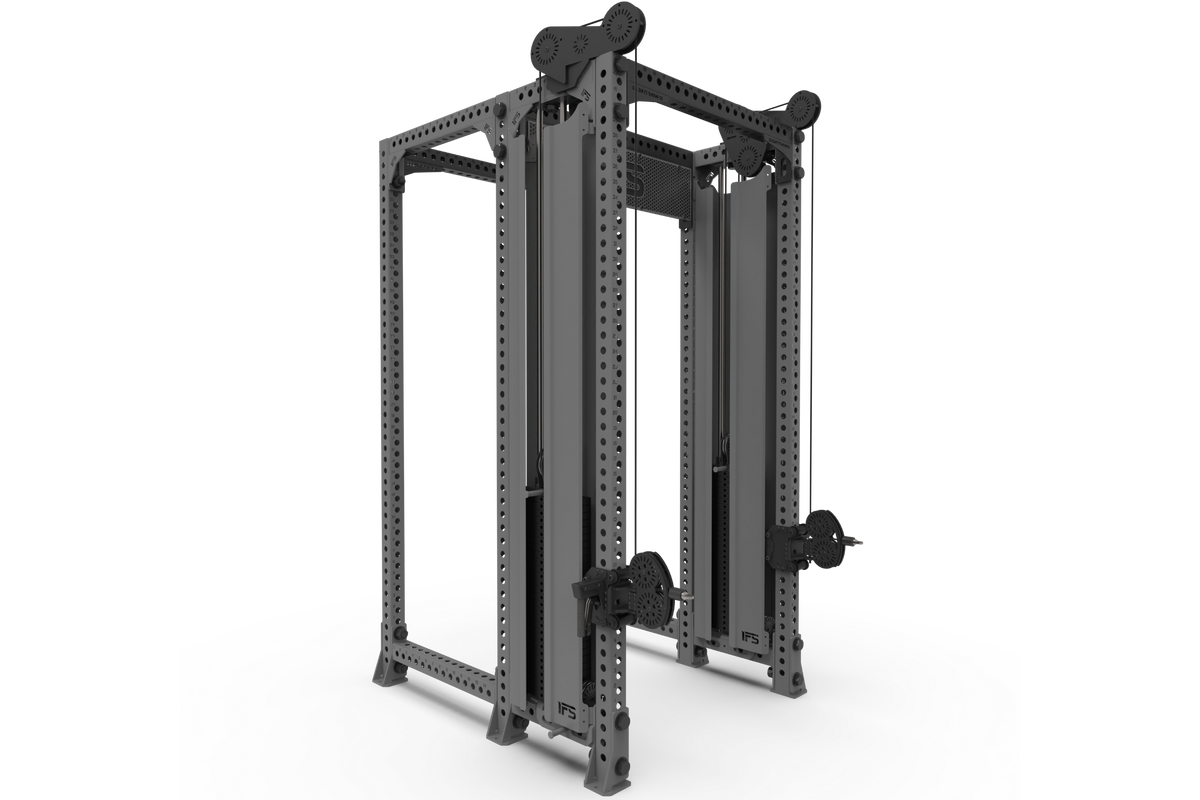

IRWIN FITNESS RACK ATTACHED FUNCTIONAL TRAINER

Introducing our first iteration into functional training systems: the Irwin Fitness Dual Functional Trainer. Designed to attach directly to the rear uprights of any power rack, this system brings full-body dual-cable training into your footprint without burning precious floor space. Equipped with two 300lb weight stacks operating on a smooth 2:1 ratio, it delivers high-capacity, fine-tuned resistance for bilateral and unilateral movements alike. Fabricated with Canadian steel, 4.5" aluminum pulleys, high quality military spec cable, all to deliver an extremely smooth and high end training experience. This rear-mount configuration adds 8" of overall height to your power rack. Note: facilities or home gyms working with tight vertical clearance, a side-mount version adding only 1" to your existing rack height will also be joining our functional trainer lineup soon. This rack attached version is an add-on.

You will receive:

(2) 300lb stacks
(2) sets of shrouds
(2) adjustable trollers (left/right)
Top/bottom pulley housing
Pre-made cables x 2

Features & Build Specs:

Made in Canada: Fabricated, welded, and finished in-house using heavy-gauge Canadian steel for maximum frame rigidity. Dual 300 LB Weight Stacks: Twin 300 lb stacks operating on a true 2:1 mechanical advantage offer a 150 lb effective resistance per side with ultra-smooth travel. Full Protective Shrouding: Steel shrouds encase both weight stacks to enhance safety, reduce noise, and present a clean, professional profile.

Ergonomic Quick-Adjust Trolleys: Custom trolley handles feature an integrated squeeze release mechanism loaded with a 15 lb internal engagement springs for fast, secure vertical height adjustments. Upright Protection System: Custom machined pull pins feature a precision-machined UHMW head, ensuring your rack uprights remain completely scratch-free even if the pin isn't fully latched during adjustment. Ultra-Glide Movement: Fitted with custom-machined acetal rollers containing integrated linear bearing inserts for frictionless, bind-free gliding up and down the uprights. Custom Swivel Hooks: In-house designed 360° swivel hooks feature internal bearing construction to eliminate cable binding and twisting during complex movement angles. Commercial Drive Cable: Built with high-tensile 3/16" coated to 1/4" nylon-sheathed aircraft cable for long-term safety and durability.

Customization & Finish Options:

Fully Custom Powder Coating: Available in custom powder coat finishes across main frames, accent panels, and trolley components. Stainless Upright Option: Optional upgraded stainless steel adjustment uprights are available upon request for premium aesthetic appeal and wear protection. Modular Integration: Engineered to bolt directly onto Irwin Fitness power racks, or adapt to existing third-party racks via rear-mount crossmembers.

These are produced on a made to order basis, typicaly lead times are 12 weeks.

Weight Stack: 300 lbs in 10 lb increments (10–300 lbs)
2:1: Pulley Ratio
Height: 96" (custom heights available at additional charge)
Pulleys: 4.5" machined aluminum pulleys for ultra-smooth operation
Cables: Imported from South Korea for superior durability and feel
Frame: Heavy-duty Canadian steel construction, powder-coated finish
Legs: Rear stabilizer legs pivot to 45° for corner placement or lock straight out
Feet: Adjustable side feet for leveling on uneven surfaces
Hardware: Black hardware standard
Upholstery: Black upholstery standard (custom colors available)
Customization:
- Custom height options
- Custom color accents (pulley housing, etc.)
Modularity: Connects seamlessly to Irwin Fitness racks and shelving for a fully expandable system
Shipping: Ships partially assembled unless otherwise requested

U.S. shipping

U.S. orders ship using Delivered Duty Paid where stated, with applicable import fees and paperwork handled in advance.

Canadian shipping

Irwin works to secure competitive freight rates. Remote or rural surcharges are confirmed for approval before shipment.

Questions: contact@irwinfitness.ca

Commercial gradeDesigned for dependable daily use.

Direct supportProduct and shipping questions answered by the Irwin team.

Commercial constructionMaterials and geometry selected for daily training use.

Precision layoutClear dimensions, attachment points and configuration details.

Built to orderFinish and hardware options are tied to actual product variants.

Facility supportPlanning and multi-unit quoting are available from the same team.

$5,910.00 CADSelected configuration

More from this category.

FREE STANDING DUAL FUNCTIONAL CABLE COLUMN

SINGLE FUNCTIONAL CABLE COLUMN

4-Tier Dumbbell Saddle Storage Rack

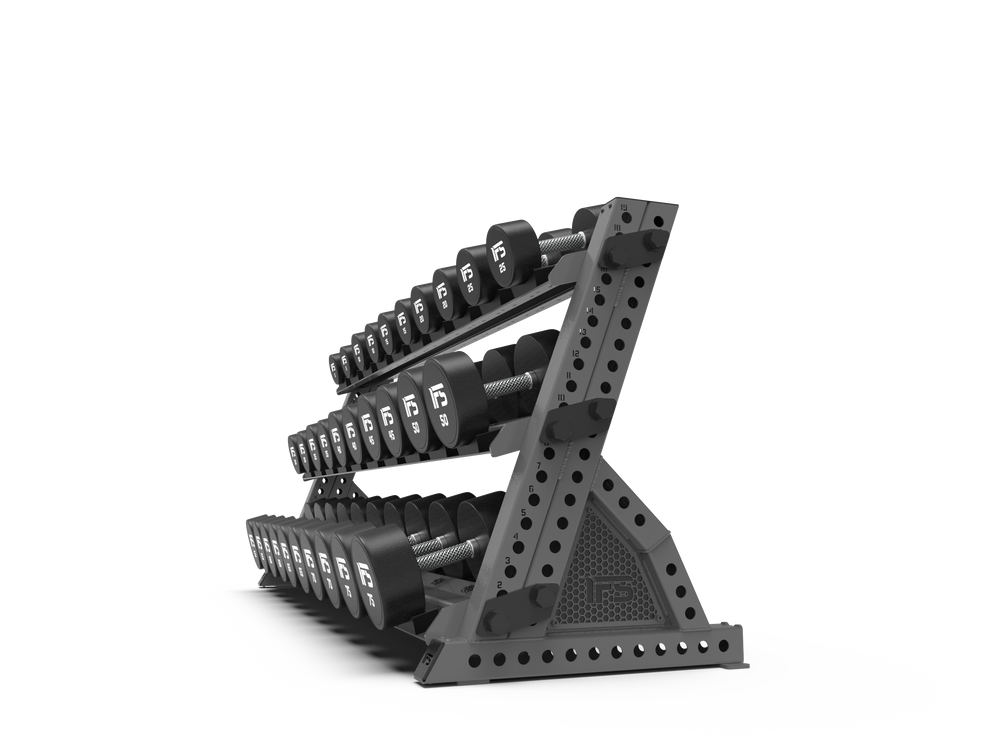

3-Tier Dumbbell Saddle Storage Rack
